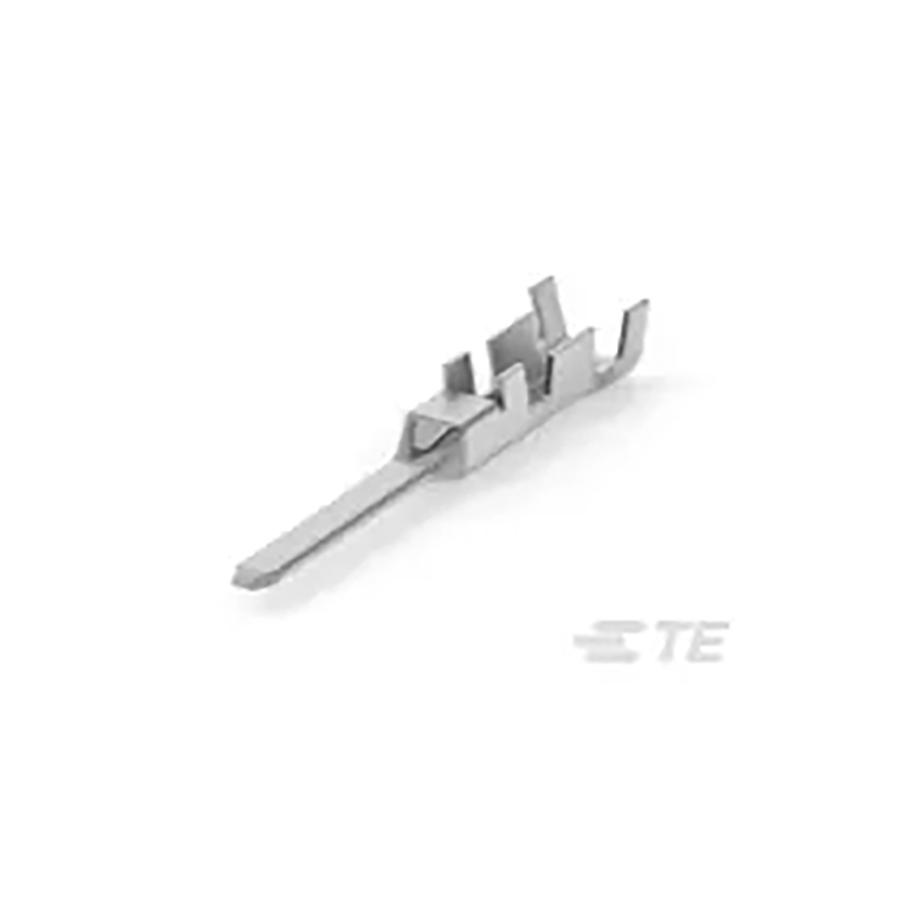

353716-5
Manufacturer:
TE Connectivity
Mfr.Part #:
353716-5
Datasheet:
Description:
Headers and Wire Housings Cable Tab
| Parameter | Value |
|---|---|
| Length | 25.8 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Reel |
| Voltage Rating | 600 V |
| RoHS | Compliant |
| Contact Plating | Tin |
| Current Rating | 7.5 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Socket (Female) |
| Shielding | Unshielded |
| ELV | Compliant |
| Connector Type | Tab |
| Wire/Cable Gauge | 14 AWG |
| Wire/Cable Type | Discrete |
| Connector System | Wire-to-Wire |
| Contact Current Rating | 15 A |
| Wire Gauge (Max) | 14 AWG |
| Wire Gauge (Min) | 16 AWG |
| Insulation Diameter | 3.302 mm |
| Contact Gender | Male |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Contact Retention | With |
Stock: 1283
Distributors
pcbx
pcbxUnit Price$0.24366
Ext.Price$0.24366
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.24366 | $0.24366 |
| 10 | $0.21657 | $2.16570 |
| 50 | $0.19249 | $9.62450 |
| 100 | $0.17109 | $17.10900 |
| 500 | $0.15207 | $76.03500 |
| 1000 | $0.13516 | $135.16000 |
| 3000 | $0.12013 | $360.39000 |
| 5000 | $0.10677 | $533.85000 |
| 10000 | $0.09490 | $949.00000 |
